Coding Machine

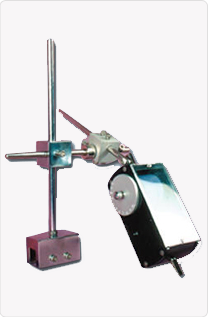

Friction Driven Coding Machine Mode - 164

It is mandatory for manufacturers of packaged goods to code information's like B.No., Dt.of Mfg., Expiry Date, Prices & other statutory information on various packings, Pouches. PIC FRICTION DRIVEN Coding Machines are the best options for Coding on plastic, HDPE bottles, pouches, tin containers, woven sacks, paper etc. The machine is compact & consistent in printing quality. It is very easy to install & operate & has nickel less coated metal body.

Coding Machine   Coding Machine


Features : It is a compact continuous motion coder for marking Batch No., Date of Mfg.,Price & other statutory information’s on flat surfaces & is ideal for on line application in Dairy Milk packing applications & is mechanically synchronized with parent machine motions. It has been specially designed for easy & quick mounting on Milk/Ghee Oil Pouch filling machines. Mineral water packing machines & Blister packing machine.

Especially designed with adjustable handle to adjust in any direction for better results. stamp ink

Specifications: PIC 164, 3 or 4 line printing

Speed:up to 100 operation/minute

Charge Of Ink: 230/250 VAC 50 c/s,Single phase.

Charge Of Ink: 10 ml apron.& it prints more than 10,000 impressions per charge of ink.

Element: Specially manufactured PIC cylindrical Cartridge made from best quality imported base material. These are chargeable.

Element: Rubber/Polymer Flat Stereo packaging machine

Weight: Approx.2.0 Kg.(model no.164)

Printing Area: 30 X 120 mm

Printing Media: Specially formulated PIC-AF-2R coding inks available in Red, Green, Blue, Black, Violet & Brown Colors in various standard packing's.


Batch Printing Machines

Testimonial


  “We are users of PIC code printing machine since ten years now, & are extremely satisfied with the sturdy make of the coders & almost zero maintenance coupled with excellent after sales service”


piccodeMr. Hari Mohan
Director of Lakshmi Processed Foods Pvt. Ltd.
